Graph Digitizer

COMPUPLAST® SOFTWARE / Product  / VEL™ Modules  / Additional Extrusion Tools / Graph Digitizer

Virtual Extrusion Laboratory™ Graph Digitizer

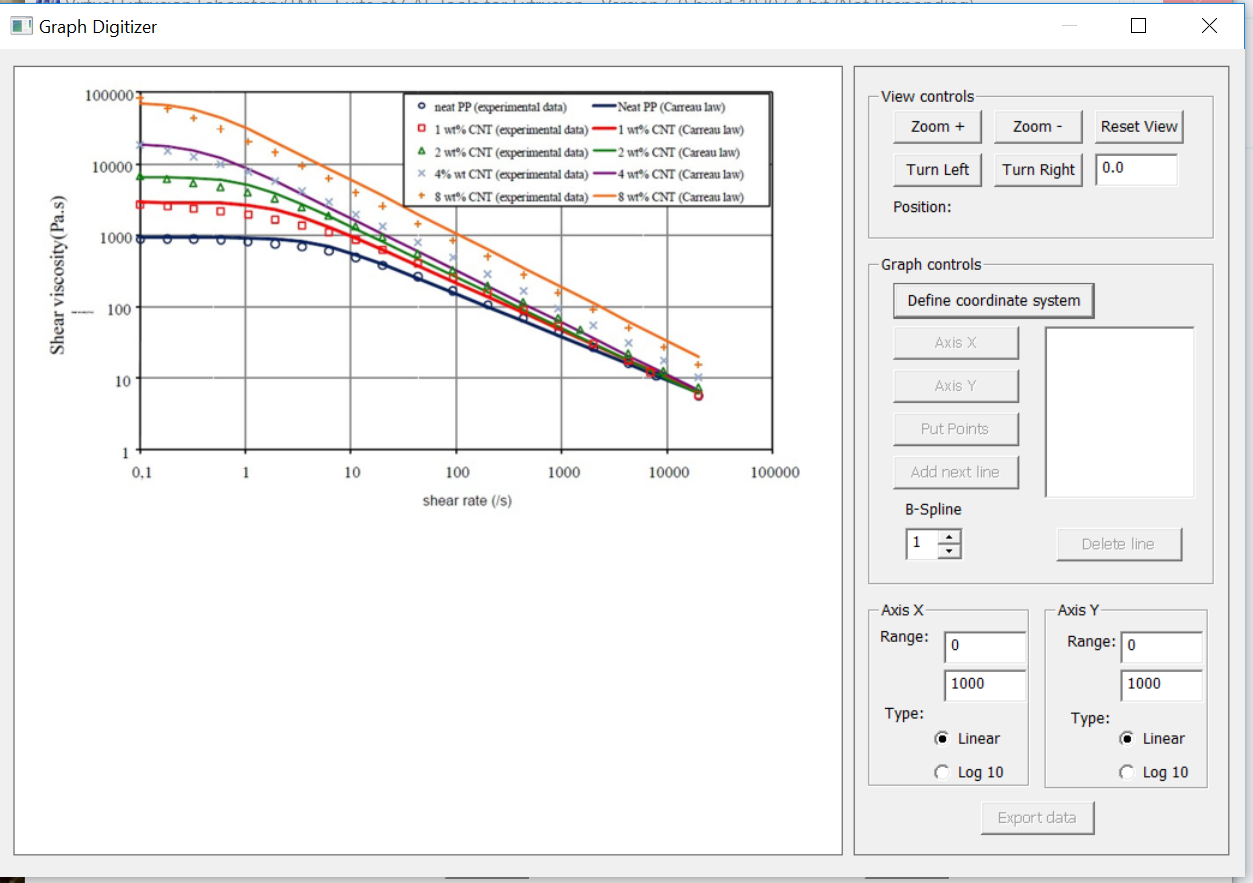

The COMPUPLAST® Graph Digitizer is very handy tool, which allows to convert even not perfect shape of the graph in to the digital form.

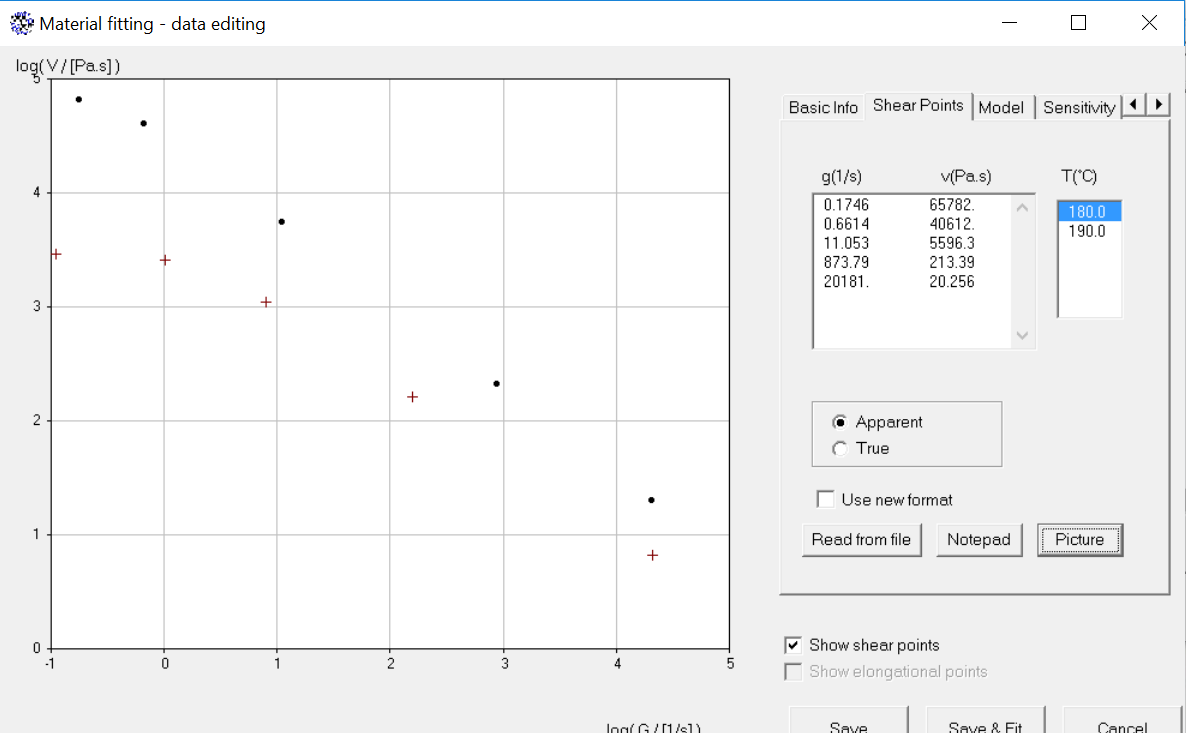

It is incorporated in VEL™, Material Properties module, tab-sheet “Measured data/Editing/Shear points”, button “Picture”

The COMPUPLAST® Graph Digitizer can help with import of the material shear and elongation curve when it is received from the material supplier as a pdf or printed picture. The Graph digitizer can handle also the problem with uneven axis of the chart and fix this problem.

Thank to this tool you can easily prepare your material for the calculation.
